Satellite Platforms

Scalable, modular platforms weighing between <1 kilogram and 500 kilograms. These accommodate commercial, defence and scientific missions in Low Earth Orbit (LEO), and beyond.

EC-12 EC-12 1U CubeSat
EC-25 EC-25 2U CubeSat
EC-42 EC-42 3U CubeSat

Products

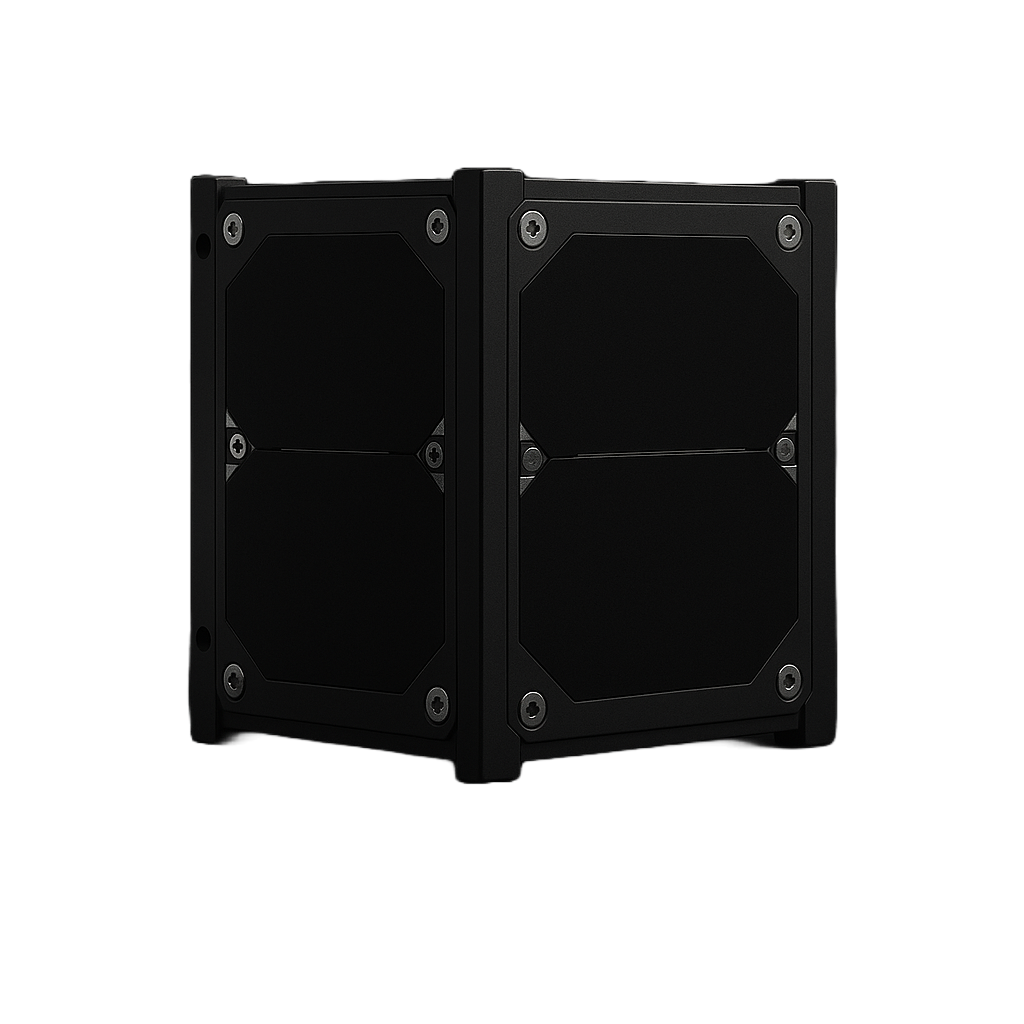

EC-12
Form Factor 1U CubeSat
Material 6061-T6 Aluminum Alloy
Mass 1.2 kg (excluding payload)

EC-12

Compact and robust

Precision in a 1U CubeSat

  • Structure
    Modular design with customizable payload interface.
    Compliance with CubeSat standards (Cal Poly CubeSat Design Specification).
  • Communication Systems
    UHF/VHF transceiver options (400 MHz - 450 MHz / 120 MHz - 150 MHz).
    S-band transceiver (2.2 GHz - 2.3 GHz) or X-band transceiver (8 GHz - 12 GHz).
  • Power System
    Solar panels with a total power output of up to 3W.
    Lithium-polymer battery with configurable capacity.
  • Onboard Sensors
    Slots for custom sensors (e.g., multispectral imaging, magnetometers).
    Bus voltage and current sensors for real-time monitoring.
  • Data Handling
    Onboard computer with an ARM Cortex-M microcontroller.
    Customizable storage options with SPI Flash or EEPROM.
  • Thermal Control
    Passive thermal management with customizable coatings.
    Optional deployable radiators for enhanced heat dissipation.

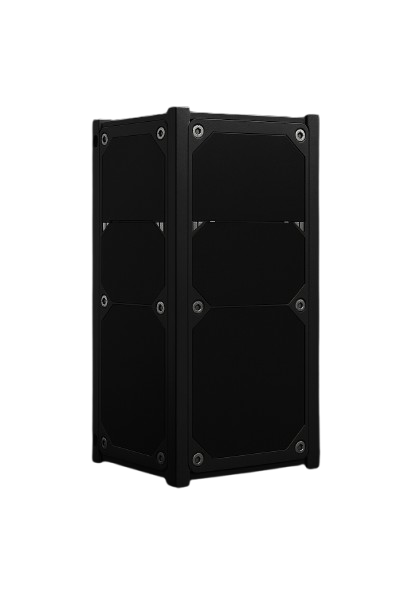

EC-25
Form Factor 2U CubeSat
Material 7075-T6 Aluminum Alloy
Mass 2.5 kg (excluding payload)

EC-25

capacity and extended power systems

Enhanced 2U CubeSat

  • Structure
    Modular design with customizable payload interface.
    Compliance with CubeSat standards (Cal Poly CubeSat Design Specification).
  • Communication Systems
    UHF/VHF transceiver options (400 MHz - 450 MHz / 120 MHz - 150 MHz).
    S-band transceiver (2.2 GHz - 2.3 GHz) or X-band transceiver (8 GHz - 12 GHz).
  • Power System
    Solar panels with a total power output of up to 6W.
    Lithium-polymer battery with configurable capacity.
  • Onboard Sensors
    Slots for custom sensors (e.g., multispectral imaging, magnetometers).
    Bus voltage and current sensors for real-time monitoring.
  • Data Handling
    Onboard computer with an ARM Cortex-M microcontroller.
    Customizable storage options with SPI Flash or EEPROM.
  • Thermal Control
    Passive thermal management with customizable coatings.
    Optional deployable radiators for enhanced heat dissipation.

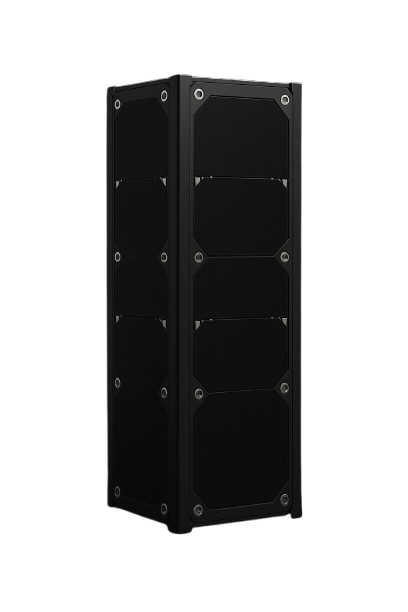

EC-42
Form Factor 3U CubeSat
Material 6061-T6 Aluminum Alloy
Mass 4.2 kg (excluding payload)

EC-42

complex experiments and governmental missions.

Advanced 3U CubeSat

  • Structure
    Modular design with customizable payload interface.
    Compliance with CubeSat standards (Cal Poly CubeSat Design Specification).
  • Communication Systems
    UHF/VHF transceiver options (400 MHz - 450 MHz / 120 MHz - 150 MHz).
    S-band transceiver (2.2 GHz - 2.3 GHz) or X-band transceiver (8 GHz - 12 GHz).
  • Power System
    Solar panels with a total power output of up to 12W.
    Lithium-polymer battery with configurable capacity.
  • Onboard Sensors
    Slots for custom sensors (e.g., multispectral imaging, magnetometers).
    Bus voltage and current sensors for real-time monitoring.
  • Data Handling
    Onboard computer with an ARM Cortex-M microcontroller.
    Customizable storage options with SPI Flash or EEPROM.
  • Thermal Control
    Passive thermal management with customizable coatings.
    Optional deployable radiators for enhanced heat dissipation.
